ST830E(ST850E) OCT spectrometer

Short Description:

JINSP ST830E/ST850E series spectrometer is dedicated to the OCT system. It is an important device in the spectral domain OCT (SD-OCT) system, which determines important performance indicators such as the imaging speed and the signal-to-noise ratio (SNR fall-off) of the OCT system.

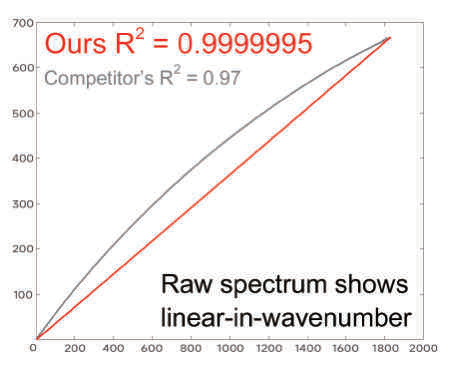

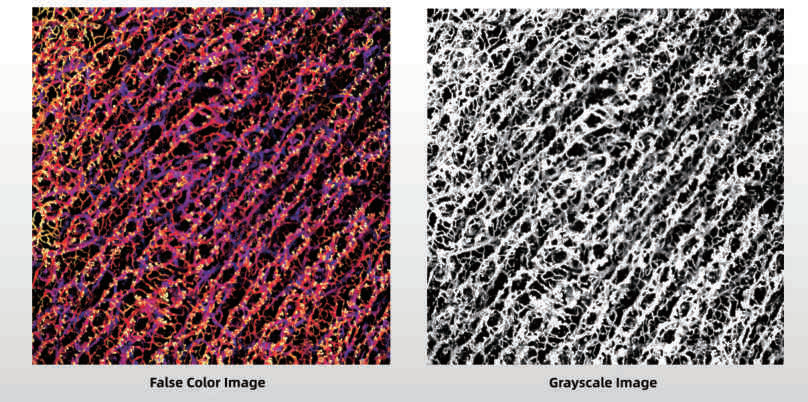

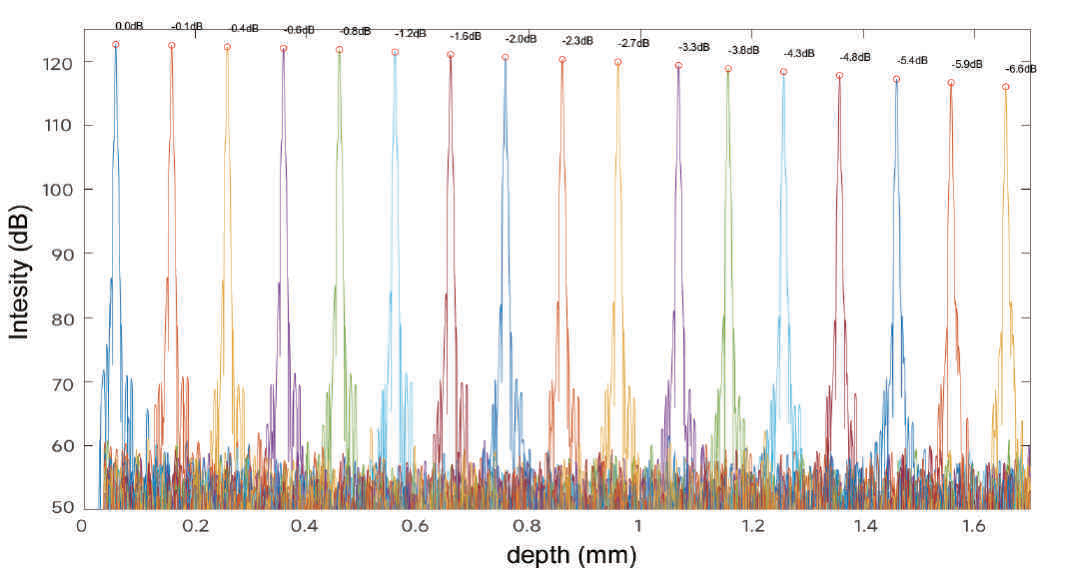

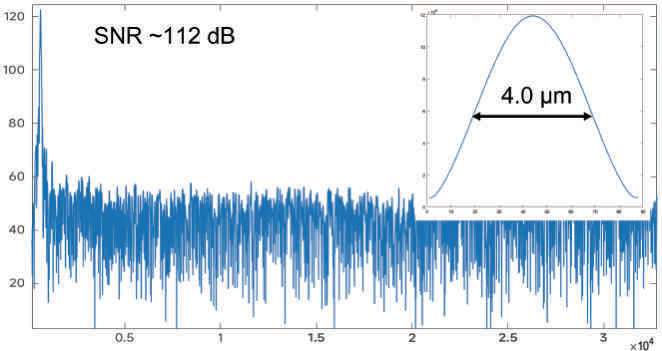

ST830/850E series spectrum realizes wavenumber linear spatial dispersion through special optical path design and directly realizes equal interval sampling of wavenumber on hardware. The acquired interference spectrum can be directly subjected to FFT without a wavenumber resampling algorithm, which greatly reduces the complexity of data processing and improves the signal-to-noise ratio of the system. In addition, this product also adopts volume phase holographic grating (VPH), which has high efficiency and can reach 110dB signal-to-noise ratio in SD-OCT experimental system (7mW light source power, 120kHz line imaging speed), and obtain high-quality OCT/OCTA in vivo biological image.

Send email to us

Product Detail

Product Tags

Application fields

● Angiography
● Laser Oscillation

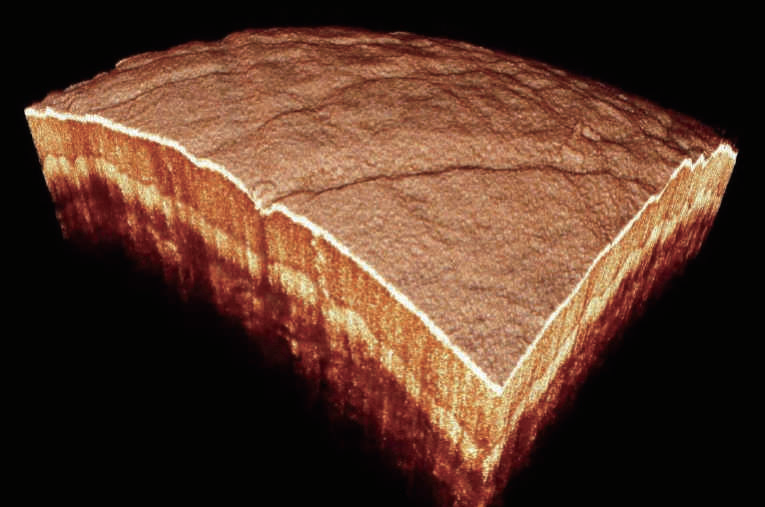

● Real-time 3D imaging
● Anterior chamber imaging

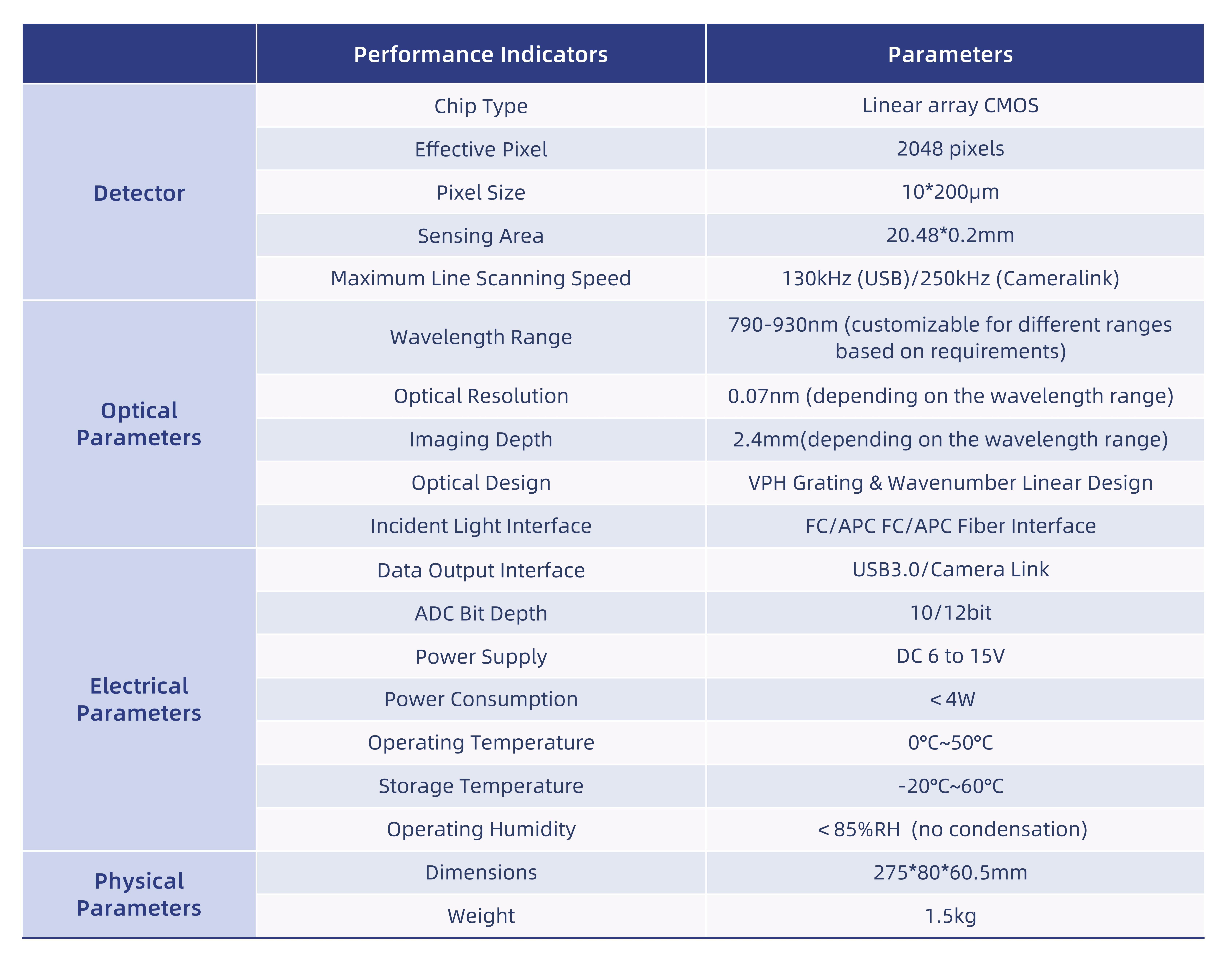

Specifications

		ST830E	ST850E
detector	type	CMOS
	Effective pixels	2048pixels
	Cell size	10*200um
	Photosensitive area	20.52*0.2mm
	Maximum line sweep speed	130kHz/250kHz
Optical parameters	Wavelength range	Customized in the range of 790-930nm	Customized in the range of 780-940nm
	Optical resolution	0.07nm	0.08nm
	Imaging depth	2.4mm	2mm
	Optical design	VPH raster & wave ridge linear design
	focal length	100mm	120mm
	Incident optical interface	FC/APC fibre optic interface
Electrical parameters	Data output interface	USB3.0 (max. 130kHz) / Camera Link (max. 250kHz)
	ADC bit depth	12bit
	Power supply	DC6to 15V
	Operating current	<600mA
	Operating temperature	0°C~50°C
	Storage temperature	-20°C~60°C
	Operating humidity	< 90% RH (non-condensing)
Physical parameters	size	26018080mm	20010060mm
	weight	1.5kg	1.5kg
