256/512 Cooled and non-cooled InGaAs Sensors,1.4µm,1.7µm,2.5µm near-infrared spectrometer, pesticides, food, Raman, scientific research applications

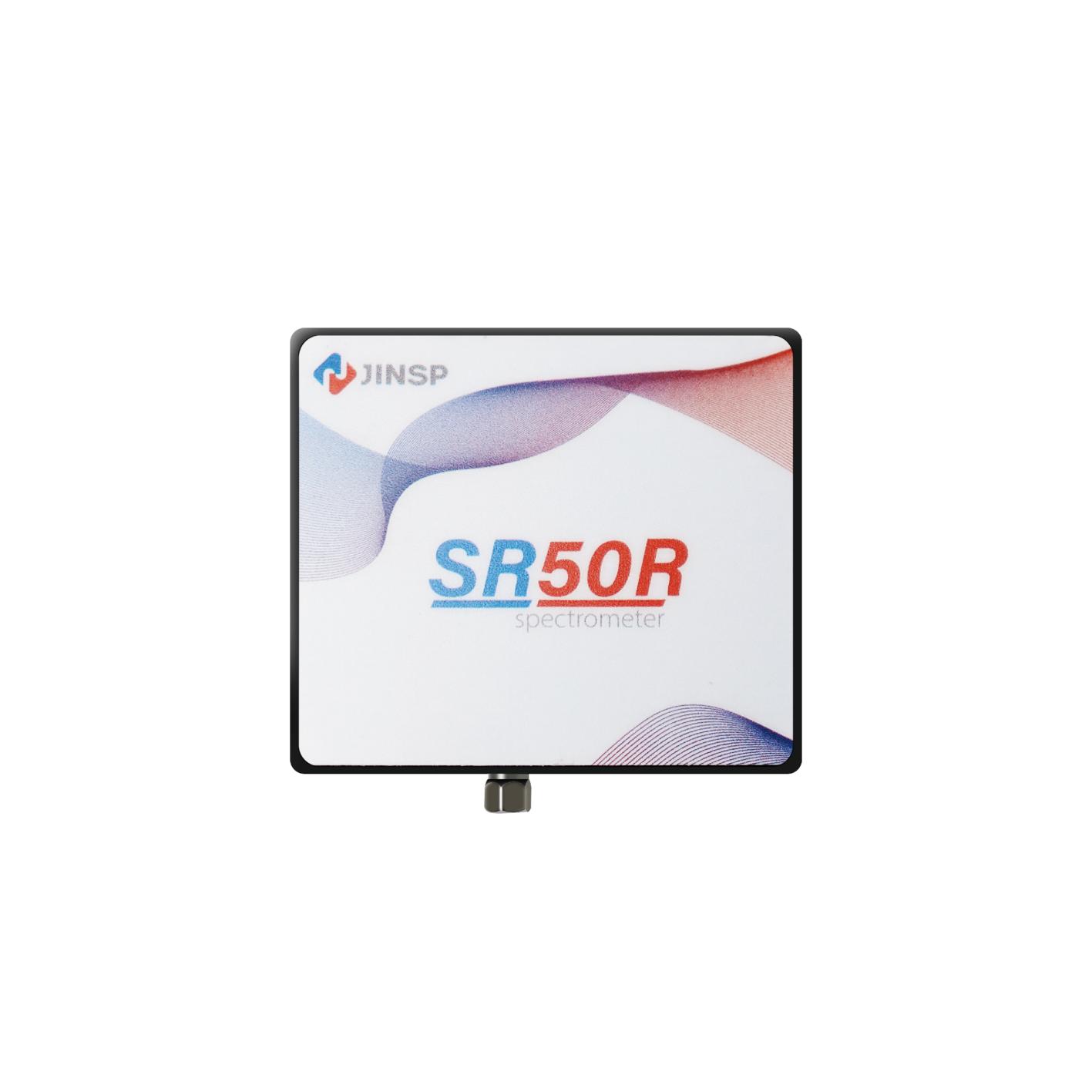

SR50R17 near-infrared spectrometer is a compact and cost- effective instrument operating from 900 nm to 1700 nm. It features a non- cooled InGaAs sensor, providing high sensitivity and resolution.

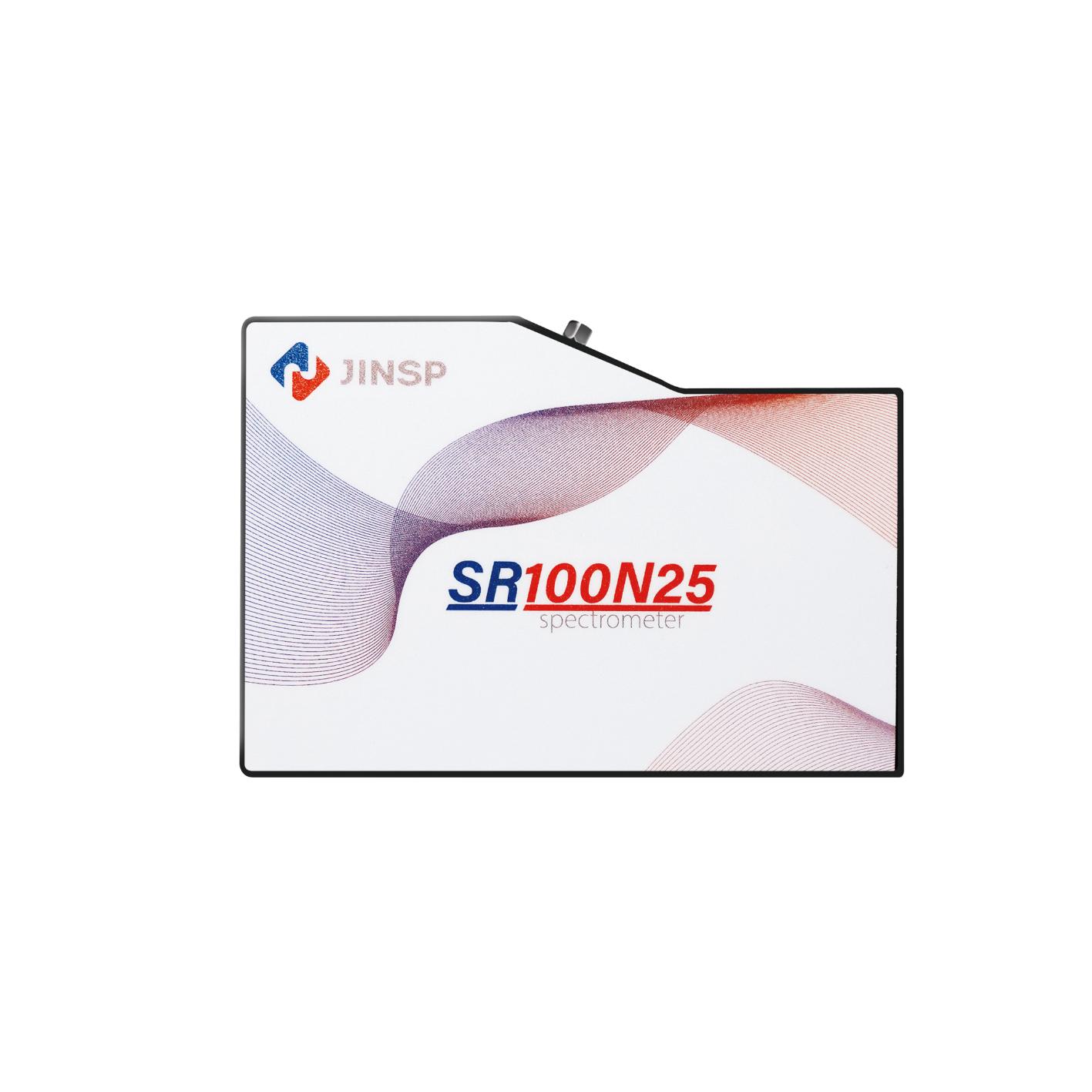

SR100N25 near-infrared spectrometer with cooling technology supports wavelength ranges of 0.91.7μm or 0.92.5μm. With a wide range of applications, it integrates filters to eliminate visible light and higher-order filters. This spectrometer is suitable for near-infrared spectroscopy detection in transmission, reflection, and absorption spectra.
SR50N14 refrigerated near-infrared miniature spectrometer is a lightweight, highly stable, and high-resolution miniature spectrometer. It features a 512-pixel refrigerated InGaAs sensor, supporting the wavelength range of 0.9μm to 1.5μm, in 1064 nm Raman spectroscopy with excellent performance.
• Small size and lightweight.
• Gold-coated lens surface for high near-infrared reflectance efficiency.
• Compatible with USB or UART to output measured spectral data, easy to integrate.
• Compitable with SMA905 optical fiber input to obtain free space light.
• Adopts on-chip cooling technology and configures low-noise signal processing circuit, effectively suppress dark current noise and improve spectral signal-to-noise ratio (SR100N&SR50N).

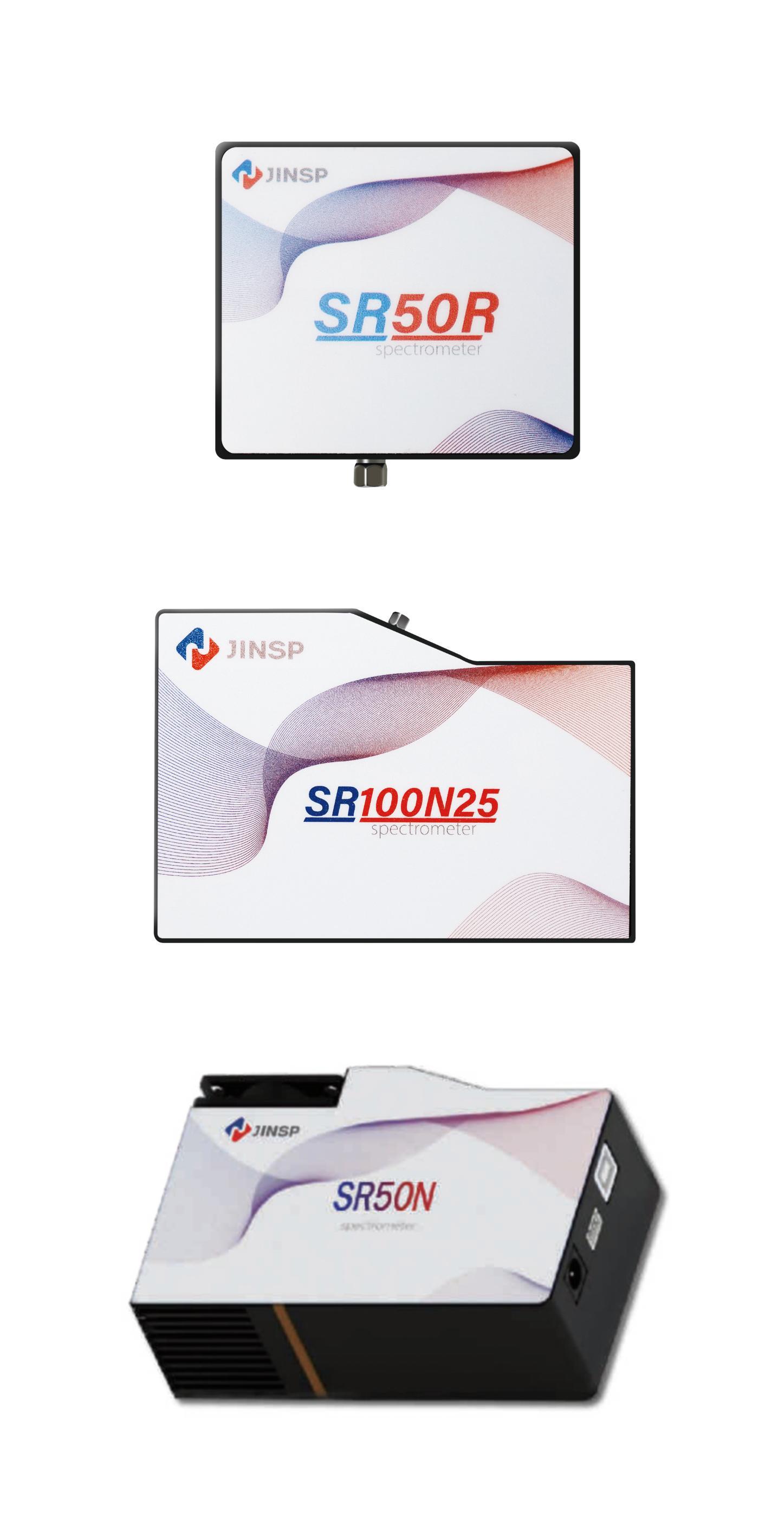

| Model | SR50R17 | SR100N25 | SR50N14 | |||
| Key features | High sensitivity | High resolution | High sensitivity | High signal-to-noise ratio | High signal-to-noise ratio | High resolution |
| Chip type | Line array InGaAs | Cooled linear array InGaAs | Cooled linear array InGaAs | |||
| Wewight | 400g | 1200g | 950g | |||
| Resolving power | 6.5nm（@25μm） | 6.3nm（@25μm） | 1.8nm（@25μm） | |||
| Wavelength range | 900~1700nm | 900~2500nm | 1064~1415nm | |||
| Cryogenic temperature | - | -10℃ | -10℃ | |||
| Working current | <1A | <3A | <2A | |||
| Dimensions | 77mm*67mm*36mm | 182mm*110mm*47mm | 118mm*79mm*40mm | |||
| Power supply | DC4.9 to 5.1V（type @5V） | |||||
| Input fiber interface | SMA905, free space | |||||
| Data outout interface | USB2.0 or UART | |||||
| ADC bit depth | 16bit | |||||
| Operating temperature | 10°C ~40℃ | |||||
| Storage temperature | -20°C ~60℃ | |||||
| Relative humidity | 0~90%RH | |||||
Application Areas
Water content measurement, wastewater testing.
Grain and feed quality testing.
Measurement of fats, oils, proteins, fibers, etc.
Measurement of the composition of drug mixtures.
